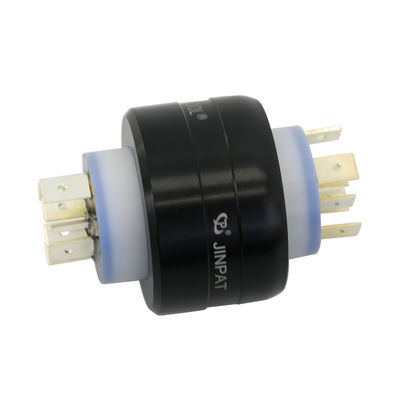

JINPAT 6-Pole 1000RPM Mercury Slip Ring with 6 Channels for Stable Power and Signal Transfer
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| تعداد قطب ها | 6 | حداکثر سرعت | 1000 دور در دقیقه |
|---|---|---|---|
| دمای کاری | -30℃~ +60℃ | رتبه ولتاژ | 250VAC/DC یا بالاتر |
| رتبه فعلی | 30 A@ 2 مدار؛ 4A@ 2 مدار | قدرت دی الکتریک | ≥200V@200Hz بین هر مدار |
| مقاومت عایق | > 25mΩ | سر و صدای الکتریکی | ≤30mΩ |
| مقاومت در برابر تماس | <1mΩ | تعداد کانال ها | 6 کانال |
| مواد خارج از کیس | آلیاژ آلومینیوم یا فولاد ضد زنگ | سرعت عملیاتی | 0-1000 دور در دقیقه |
| سازگاری سیگنال | میکرو ولتاژ، جریان، EMF، ترموکوپل، فشار سنج، صدا، تصویر، فرکانس بالا | سازگاری قدرت | اتصالات برق |
| فناوری های خاص | فناوری های ویژه عایق، آب بندی و رسانا | ||
| برجسته کردن | 6-Pole Slip Ring,1000RPM Mercury Slip Ring,6 Channels Rotary Electrical Connector,1000RPM Mercury Slip Ring,6 Channels Rotary Electrical Connector |
||
توضیحات محصول
JINPAT 6-Pole Mercury Slip Ring with Special Sealing Materials
Premium Electrical Contacts for Stable Connection
Special promotional price available exclusively on Alibaba
JINPAT rotating electrical connectors utilize advanced insulation, sealing, and conductive technologies. The outer casing is constructed from durable aluminum alloy or stainless steel, designed for reliable performance in various rotating applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Poles | 6 |
| Operating Speed | 0-1000rpm |
| Working Temperature | -30℃ to +60℃ |
| Voltage Rating | 250VAC/DC or higher |
| Current Rating | 30A @ 2 circuits; 4A @ 2 circuits |
| Dielectric Strength | ≥200V @ 200Hz between each circuit |
| Insulation Resistance | >25MΩ |
| Electrical Noise | ≤30mΩ |
Key Advantages
- Mercury-free design compliant with CE RoHS standards
- Exceptionally low electrical noise
- Minimal contact resistance (less than 1mΩ)
- Maintenance-free operation with superior reliability compared to traditional slip rings
- Ideal for both signal and power transfer in rotating equipment
Primary Applications
- Spinning LED displays and wind turbines
- Electroplating lines and power connections
- Resistor cutting machines and speed dome cameras
- Packaging machinery and heating rollers
- Laminating equipment and wind machines
- Rotary stages and cable wheels
- Circular knitting machines and coloring devices
- Robotics and rotary lamp boxes
- Medical equipment and index tables
Product Images
Company Advantages
- 12,000 square meter production facility with 500+ employees
- Recognized as National High and New Technology enterprise with 69 patents
- Global partnerships with renowned companies and worldwide agents
- 10,000+ successful designs across civil, military, commercial, and industrial applications
- 20+ years of experience since founding in 1996
- Custom slip ring solutions tailored to specific equipment requirements
- Fast delivery times
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high-quality slip rings, providing comprehensive solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that enables power and signal transmission between stationary and rotating structures, eliminating the need for dangling wires and improving system reliability.
Product offerings
- Electrical slip rings (capsule, through-bore, miniature)
- Signal slip rings (USB, fiber optic, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom slip ring solutions
- Large volume production capabilities
How to select a slip ring?
Proper selection requires details about your application's operating parameters including circuit count, voltage/current requirements, operating speed, and mounting configuration.
Custom solutions
We offer custom slip ring designs tailored to your specific requirements. Our engineering team will develop the perfect solution for your application needs.
