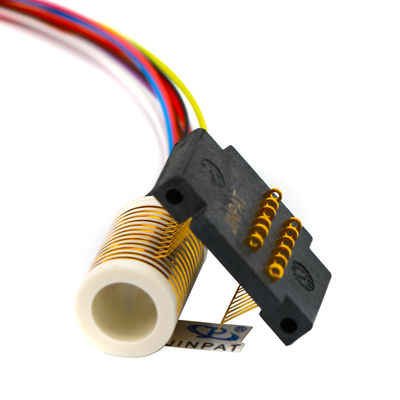

Compact 12 Circuits Separate Slip Ring with 360° Continuous Rotation for Smooth Power Transfer
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| تعداد مدارها | 12 | سرعت عملیاتی | 0-100 دور در دقیقه |
|---|---|---|---|
| ولتاژ | 240 VAC/DC | رتبه فعلی | 1-3A |
| محدوده دما | -20 ℃ تا +60 | رطوبت کاری | 60% RH یا بالاتر |
| مواد تماس تلفنی | طلا به طلا | اندازه سرب | 28 # مس با روکش نقره |
| طول سرب | 250 میلی متر (9.843inch) | قدرت دی الکتریک | ≥200 vac @50Hz ، بین هر مدار |
| جنس بدنه | فلز گرانبها | مقاومت عایق | 50 mΩ @ 500 vdc |
| سر و صدای الکتریکی | 30 MΩmin | حداکثر سرعت | 200 دور در دقیقه پیوسته |
| چرخش | 360 درجه پیوسته | ||
| برجسته کردن | 12 Circuits Separate Slip Ring,360° Continuous Rotation Slip Ring,Compact Separate Slip Ring,360° Continuous Rotation Slip Ring,Compact Separate Slip Ring |
||
توضیحات محصول
Compact LPS-12 Gold Separate Slip Ring - 12 Circuits
This high-quality slip ring unit is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating structures. Also known as rotary electrical interfaces or electrical rotary joints, these components enhance system capability, simplify design, and prevent damage during rotation.
Key Features
- 12-circuit standard model with gold contacts
- Operates at speeds up to 200 rpm continuously
- 250mm standard lead length with color-coded wiring
- Compatible with various data bus protocols
- Available in sealed configurations
- Precision ball bearings for extended service life
- 90° V-groove design for smooth operation
Performance Advantages
- Minimal torque requirements for system efficiency
- Compact footprint for space-constrained applications
- Exceptionally smooth rotation characteristics
- Low electrical noise for signal integrity
- 360° continuous rotation capability
- High bandwidth transfer capacity
- Rapid shipping available for urgent requirements
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Speed | 0-100 rpm |
| Number of Circuits | 12 |
| Voltage Rating | 240 VAC/DC |
| Current Rating | 1-3A |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Gold to Gold |
| Dielectric Strength | ≥200 VAC @50Hz |
| Insulation Resistance | 50 MΩ @ 500 VDC |
Typical Applications
- Electrical test equipment and instrumentation
- Manufacturing and process control systems
- Robotics and rotary sensor applications
- CCTV pan/tilt camera mechanisms
- Medical and aviation equipment
- Exhibit/display rotation systems
- Custom and OEM machinery
Manufacturer Information
JINPAT Electronics specializes in high-quality slip ring solutions with:
- 12,000+ square meter production facility with 500+ employees
- 69 patents and National High-Tech Enterprise recognition
- 20+ years of R&D and manufacturing experience since 1996
- 10,000+ successful designs across commercial and military applications
- Global partnerships with leading enterprises
- Custom engineering solutions available
Frequently Asked Questions
What is a slip ring?
A slip ring is an electromechanical device that enables power and signal transmission between stationary and rotating components, eliminating damage-prone dangling wires while improving system performance.
Product Selection Guidance
For optimal slip ring selection, consider your application's circuit requirements, voltage/current specifications, operating speed, and mounting configuration. Our engineering team offers complimentary consultation for custom solutions.
