30 Circuit 300 RPM Capsule Slip Ring 240VAC 1A for Medical Equipment
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| شماره مدار | 30 | رتبه فعلی | 1a |
|---|---|---|---|
| ولتاژ | 240VAC | سرعت کار | 0~300 دور در دقیقه |
| دمای کار | -20 ~ 60+ | سر و صدای الکتریکی | ≤15mΩ |
| مواد تماس تلفنی | فلز گرانبها | اندازه سیم | 30# مس روکش شده مس UL ، تفلون |
| طول سیم سرب | روتور: 250 میلی متر؛ استاتور: 250 میلی متر | رطوبت | ≤60% RH |
| درجه حفاظت | IP54 | سبک | حلقه لغزش کپسول |
| نوع | لوازم جانبی الکترونیکی | رابط تماس | مخاطبین طلایی |
| رنگ سیم | دارای کد رنگی | ||
| برجسته کردن | 30 circuit capsule slip ring,300 RPM medical slip ring,240VAC 1A capsule slip ring,300 RPM medical slip ring,240VAC 1A capsule slip ring |
||
توضیحات محصول
Miniature 300 RPM Slip Ring with 30 Circuits Electrical Contacts
Premium Quality for Medical Equipment and Industrial Applications
Special Offer Available Exclusively on Alibaba

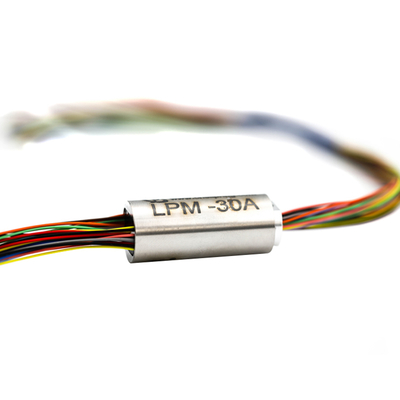

LPM-30A Slip Ring Description
The LPM-30A miniature slip ring with 30 circuits is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating components. This standard, off-the-shelf unit features gold contacts at the rotary interface and color-coded lead wires on both stator and rotor for simplified electrical connections.
LPM-30A Slip Ring Specifications
| Parameter | Value |
|---|---|
| Circuits | 30 |
| Current Rating | 1A |
| Voltage | 240VAC |
| Electrical Noise | ≤15mΩ |
| Working Speed | 0~300 RPM |
| Contact Material | Precious metal |
| Wire Size | 30# silver plated copper UL, Teflon |
| Lead Wire Length | Rotor:250mm; Stator:250mm |
| Working Temperature | -20~+60℃ |
| Humidity | ≤60%RH |
| Protection Grade | IP54 |
Primary Applications
- Electric devices and control systems
- Medical facilities and equipment
- Industrial machinery and automation
- LED display and lighting systems
- Process control equipment

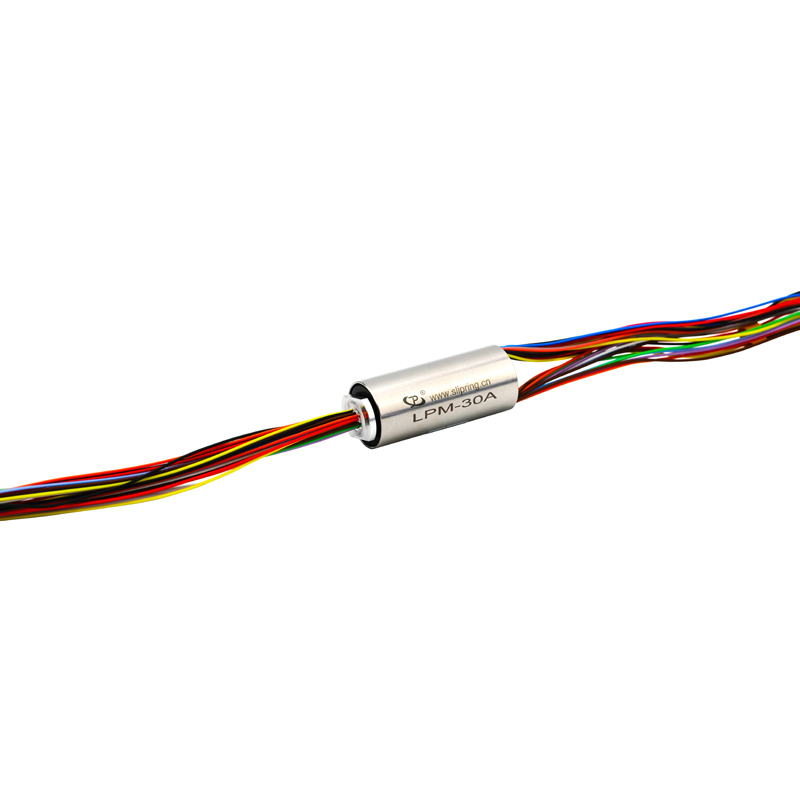

Product Visuals
Manufacturer Advantages
- 12,000 square meter production facility with 500+ employees
- Recognized as National High and New Technology enterprise with 69 patents
- Global partnerships with renowned enterprises and worldwide agents
- 10,000+ successful designs for civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Custom slip ring solutions tailored to specific equipment requirements
- Efficient production and fast delivery capabilities
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high-quality slip rings, offering comprehensive solutions for rotating systems.
What is a slip ring?
An electromechanical device enabling power and signal transmission between stationary and rotating structures, eliminating damage-prone dangling wires while improving mechanical performance.
Product offerings:
- Electrical Slip Rings (capsule, through-bore, miniature)
- Signal Slip Rings (USB, fiber optic, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Ring Solutions
- Large volume production capabilities
How to select a slip ring?
Consider your application's operating parameters including circuit count, voltage/amperage requirements, operating speed, and mounting configuration. Our engineers can assist with selection.
Custom solutions available?
Yes, our engineering team develops tailored solutions to meet specific application requirements. Contact us to discuss your needs.
