48VAC 4-Wire Miniature Slip Ring 1A Current 100 RPM Speed
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| شماره مدار | 4 | رتبه فعلی | 1a |
|---|---|---|---|
| ولتاژ | 48 VAC | سرعت کار | 0 تا 100 دور در دقیقه |
| دمای کار | -20 ~ 60+ | سر و صدای الکتریکی | ≤15mΩ |
| مواد تماس تلفنی | فلز گرانبها | مواد مسکن | فولاد ضد زنگ |
| اندازه سیم | 30# مس روکش شده مس UL ، تفلون | طول سیم سرب | روتور: 250 میلی متر؛ استاتور: 250 میلی متر |
| درجه حفاظت | IP54 | سبک | حلقه لغزش کپسول |
| نوع | لوازم جانبی الکترونیکی | نوع تماس | مخاطبین طلایی |
| رنگ سیم | دارای کد رنگی | ||
| برجسته کردن | 48VAC miniature slip ring,4-wire slip ring 1A current,capsule slip ring 100 RPM,4-wire slip ring 1A current,capsule slip ring 100 RPM |
||
توضیحات محصول
48 VAC 4-Wire Super Miniature Slip Ring with Light Small Figure Illumination Electrical Contacts
Product Description
The LPMS-04A super miniature slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating parts. This standard off-the-shelf unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.
Specifications
| Circuits | 4 |
|---|---|
| Current Rating | 1A |
| Voltage | 48 VAC |
| Electrical Noise | ≤15mΩ |
| Working Speed | 0~100 RPM |
| Contact | Precious metal |
| Housing | Stainless steel |
| Wire Size | 30# silver plated copper UL, Teflon |
| Lead Wire Length | Rotor:250mm; Stator:250mm |
| Working Temperature | -20~+60℃ |
| Protection Grade | IP54 |
Main Applications
- Electric devices
- Medical facilities
- Industrial machinery
- LED industry
- Medical equipment
- Process control equipment

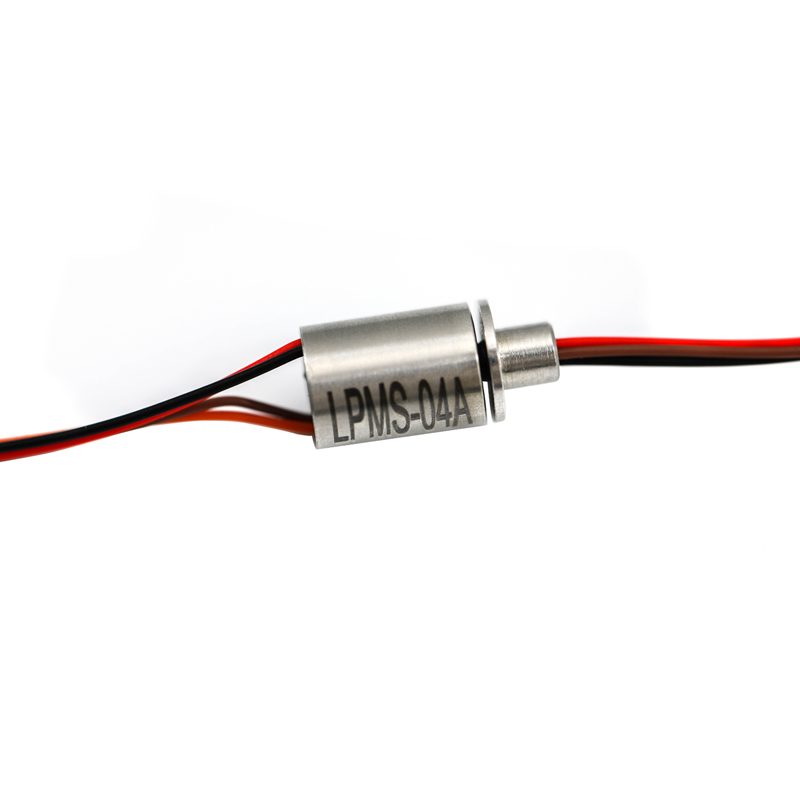

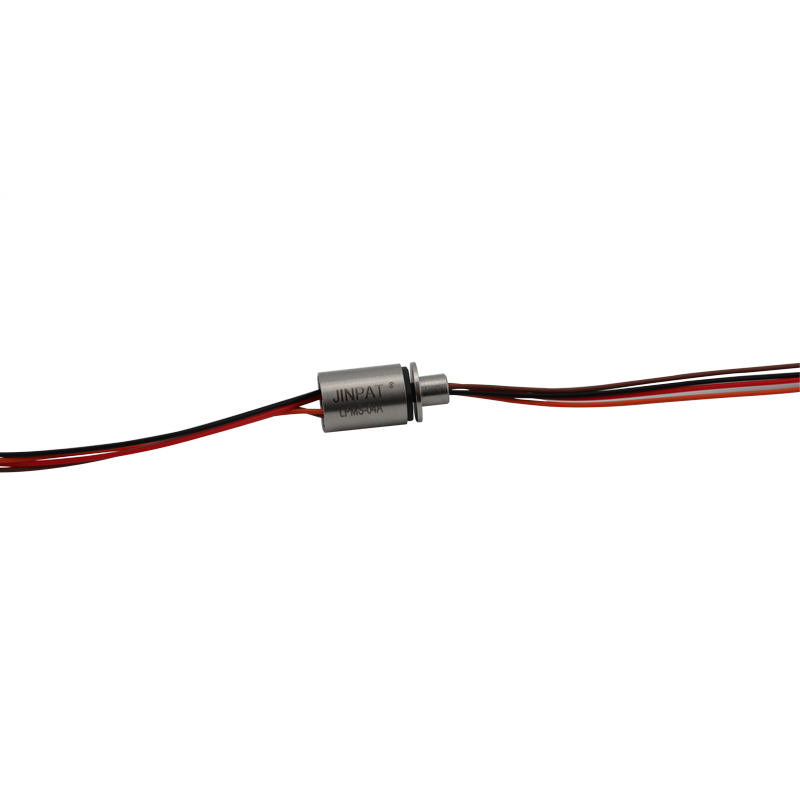

Product Images
Our Advantages
- 12,000 square meter production facility with 500+ employees
- Recognized as "National High and New Technology" enterprise with 69 patents
- Global partnerships with renowned enterprises and agents worldwide
- Over 10,000 successful designs for civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Free custom slip ring solutions for various equipment requirements
- Fast delivery service
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high quality slip rings, offering various solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that enables power and electrical signal transmission between stationary and rotating structures. It improves mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires.
What kinds of slip rings do we offer?
- Electrical Slip Rings (capsule, through-hole, miniature, etc.)
- Signal Slip Rings (USB 2.0/3.0, fiber optic rotary joints, high frequency, etc.)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance with custom/modified solutions.
Do you offer custom slip rings?
Yes, our engineers can develop perfect solutions for your specific needs. Contact us to discuss custom requirements.
