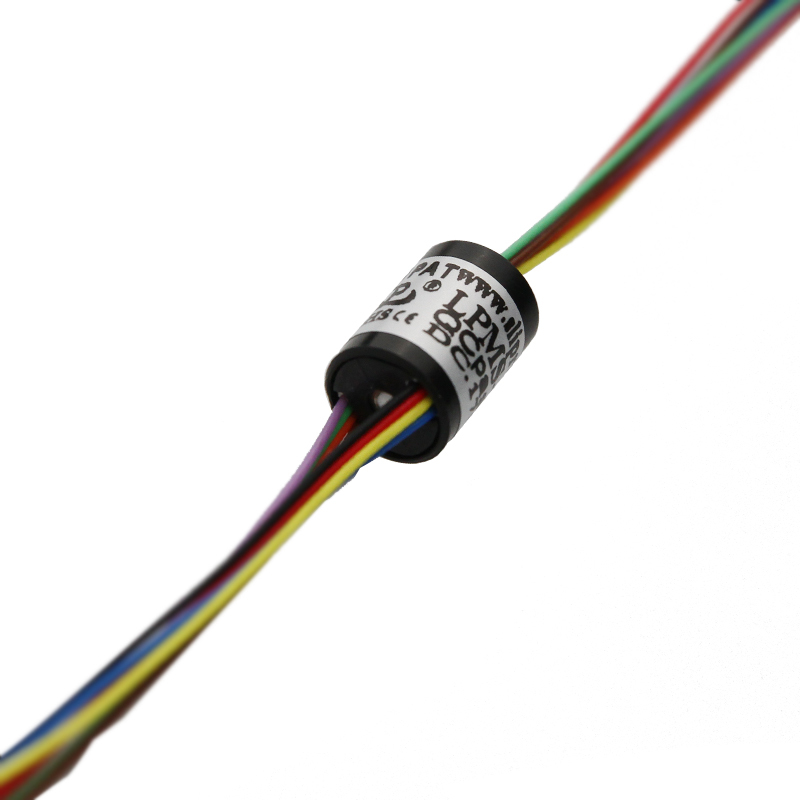

8 Circuit Capsule Slip Ring 1A 240VAC/DC Precious Metal
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| تعداد مدارها | 8 | رتبه فعلی | 1 آمپر در هر سیم |
|---|---|---|---|
| مواد تماس تلفنی | فلز گرانبها | سرعت عملیاتی | 0-300 دور در دقیقه |
| ولتاژ | 240 VAC/DC | دامنه دما | -20 ℃ تا +60 |
| نوسان مقاومت پویا | ≤35mΩ | طول سرب | 250 میلی متر |
| رطوبت کار | 60% RH یا بالاتر | مواد مسکن | پلاستیک |
| سر و صدای الکتریکی | 1mΩMin | نوع تماس | طلای طلایی |
| نوع سیم | روکش نقره | چرخش | 360 درجه پیوسته |
| سرعت | 300 دور در دقیقه پیوسته | ||
| برجسته کردن | 8 circuit capsule slip ring,1A 240VAC/DC slip ring,precious metal slip ring,1A 240VAC/DC slip ring,precious metal slip ring |
||
توضیحات محصول
LPMS-08A Capsule Slip Ring with USB Compatibility
Premium Quality at Competitive Pricing
Bargain Price Only in Alibaba
Product Overview
The LPMS-08A slip ring is an electromechanical device that enables the transmission of power and electrical signals between stationary and rotating structures. Ideal for any system requiring rotation while maintaining electrical connections.
Technical Specifications
| Operating Speed | 0-300 rpm |
| Circuits | 8 |
| Voltage | 240 VAC/DC |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Precious metal |
| Dynamic Resistance Fluctuation | ≤35mΩ |
| Lead Length | Standard 250 mm (9.843inch) |
| Working Humidity | 60% RH or higher |
| Housing Material | Factory plastic |
| Electrical Noise | 1mΩMin |
Key Features
- 8 circuit configuration with 1 amp per circuit capacity
- Precision assembly for exceptional rotational lifespan
- Continuous operation up to 300 rpm
- Gold-Gold contact points for reliable connectivity
- Color-coded, silver-plated lead wires for easy installation
- Excellent performance with low-level control signals
Product Advantages
- Space-saving compact design for constrained installations
- Low-noise operation with smooth rotation
- 360° continuous rotation capability
- Customizable with special components
- Expedited shipping available for urgent requirements
Product Dimensions
Product Display
Manufacturer Advantages
JINPAT Electronics provides free custom slip ring solutions to propel your technology forward.
- 12,000+ square meter facility with 500+ employees
- Recognized as "National High and New Technology" enterprise
- Holder of 69 patents for innovative solutions
- Global partnerships with renowned enterprises
- 10,000+ successful designs across multiple industries
- Established in 1996 with 20+ years of R&D experience
- Fast delivery on standard and custom solutions
Typical Applications
Frequently Asked Questions
1. What do we do?
We specialize in developing, designing, and manufacturing high-quality slip rings, offering comprehensive solutions for rotating systems.
2. What is a slip ring?
A slip ring enables power and signal transmission between stationary and rotating components, eliminating damage-prone dangling wires while improving mechanical performance.
3. What kinds of slip rings do we offer?
- Electrical Slip Rings (capsule, through-bore, miniature)
- Signal Slip Rings (USB 2.0/3.0, fiber optic, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Ring Solutions
- Large Volume Production
4. How do I choose a slip ring?
Selection requires details about your application's circuits, voltage/amperage requirements, operating speed, and mounting configuration. Contact our engineers for assistance.
5. Do you offer custom slip rings?
Yes, our engineering team develops tailored solutions for unique requirements. Contact us to discuss your specific needs.
