8 Circuit Capsule Slip Ring 1A 240VAC/DC Gold Contacts
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| تعداد مدارها | 8 | ولتاژ | 240 VAC/DC |
|---|---|---|---|
| رتبه فعلی | 1 آمپر در هر مدار | سرعت عملیاتی | 0-200 دور در دقیقه |
| مواد تماس تلفنی | طلا به طلا | دامنه دما | -20 تا +60 |
| اندازه سرب | 30# مس روکش شده نقره ای | طول سرب | 250 میلی متر (9.843inch) |
| مقاومت عایق | 50 mΩ @ 500 vdc | سر و صدای الکتریکی | حداقل 30mΩ |
| مواد مسکن | مهندسی پلاستیک یا فلز | چرخش | 360 درجه پیوسته |
| انتقال پهنای باند | عالی | گشتاور | کم |
| طراحی | فشرده | ||
| برجسته کردن | 8 circuit slip ring,capsule slip ring with gold contacts,240VAC/DC slip ring,capsule slip ring with gold contacts,240VAC/DC slip ring |
||
توضیحات محصول

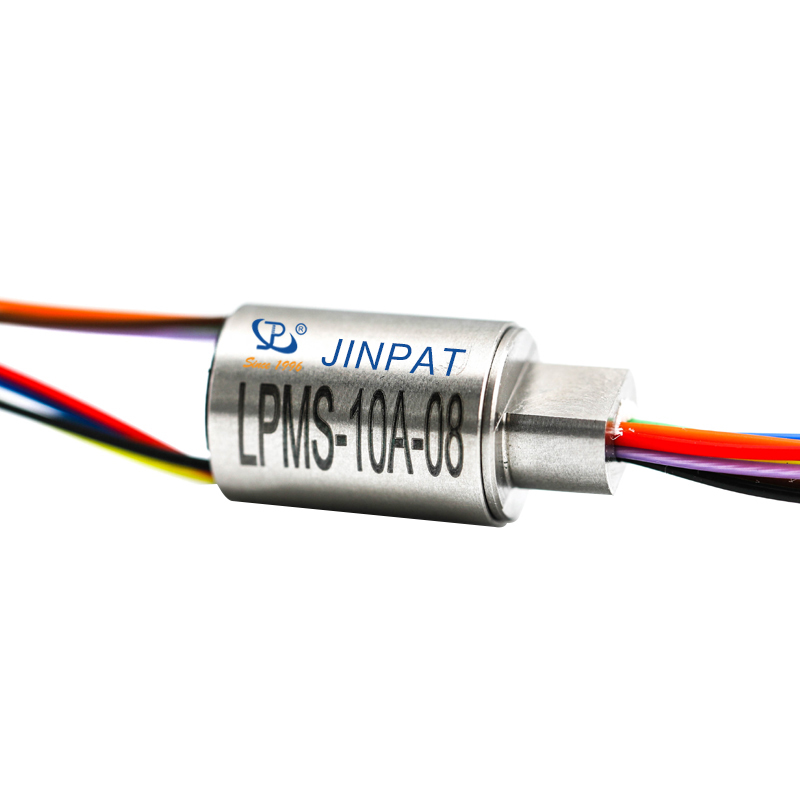

LPMS-10A-08 Super Miniature Slip Ring
Low Torque 1A/Road, Can Be Mixed Motor Slip Ring
Product Description
Bargain Price Only in Alibaba
The LPMS-10A-08 super miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
The LPMS-10A-08 allows tremendous flexibility in dealing with system size restrictions. It is available in 1 to 8 circuit configurations.
Key Features
- 8 circuits models
- 1 amp per circuit, 240VAC/DC
- Precision assembly to provide exceptional rotational life
- Speed up to 200 rpm continuous
- Gold-Gold contacts
- Flexible, color-coded, silver-plated, lead wires
- Superior handling of low level control signals
- Metal housing optional
Technical Specifications
| Operating Speed | 0-200 rpm |
|---|---|
| Number of Circuits | 8 |
| Voltage | 240 VAC/DC |
| Current Rating | 1 amp per circuit |
| Temperature Range | -20 to +60°C |
| Contact Material | Gold to Gold |
| Lead Size | 30# silver plated copper |
| Lead Length | Standard 250 mm (9.843inch) |
| Insulation Resistance | 50 MΩ @ 500 VDC |
| Electrical Noise | 30mΩ Min |
| Housing Material | Engineering plastic or metal |
Product Advantages
- Low torque minimizes system torque budget
- Compact design to fit in the most demanding space
- Smooth running
- Low electrical noise
- Quick shipment per your urgent requirement
- 360° continuous rotation
- High bandwidth transfer capability
- Rapid shipment
Our Manufacturing Advantages
Welcome to JINPAT Electronics
Providing free custom slip rings solutions, creating propulsion for your technology
- With a large plant of over 12,000 square meters and more than 500 employees
- The company has been awarded the title of "National High and New Technology" and has obtained 69 patents
- Long-term cooperation with global famous enterprises and agents all over the world
- With Over 10,000 designs with success in civil, military, commercial and industrial applications
- Founded in 1996, with more than 20 years of production and R & D experience
- Providing free custom slip rings solutions, which can be suitable for a variety of equipment
- Fast delivery
