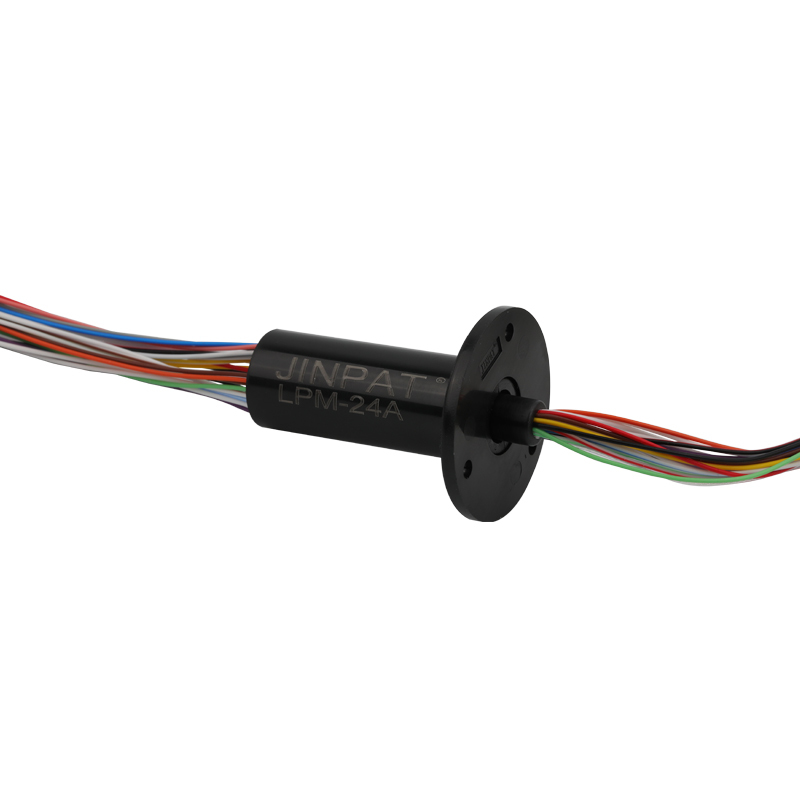

24 Circuit Slip Ring 240V 2A Gold Contact for Robotic Arm
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| تعداد مدارها | 24 | ولتاژ | 240 VAC/DC |
|---|---|---|---|
| رتبه فعلی | 2 آمپر در هر مدار | سرعت عملیاتی | 0-200 دور در دقیقه |
| مواد تماس تلفنی | طلا به طلا | دامنه دما | -20 ℃ تا +60 |
| اندازه سرب | 30# مس روکش شده نقره ای | طول سرب | 250 میلی متر |
| قدرت دی الکتریک | ≥200 vac @50Hz | مقاومت عایق | 50 mΩ @ 500 vdc |
| سر و صدای الکتریکی | 30mΩmin | نوع چرخش | پیوسته |
| مقاومت در برابر تماس | کم | گشتاور | کم |
| نگهدار | رایگان | ||
| برجسته کردن | 24 circuit slip ring gold contact,240V slip ring for robotic arm,2A rotary slip ring with warranty,240V slip ring for robotic arm,2A rotary slip ring with warranty |
||
توضیحات محصول
JINPAT 24 Passage Capsule Slip Ring
Compact Design with Ultra-Low Resistance and Long Working Life for Robotic Arm Applications
Special Offer: Bargain Price Only on Alibaba
Product Overview
This 24-circuit slip ring provides a reliable rotary electrical interface for systems requiring continuous rotation while transferring power or data between stationary and rotating structures. Also known as a rotary electrical joint, commutator, or collector, it features gold-to-gold contacts for exceptional durability.
Key Specifications
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Number of Circuits | 24 |
| Voltage | 240 VAC/DC |
| Current Rating | 2 amps per circuit |
| Operating Speed | 0-200 rpm |
| Contact Material | Gold to Gold |
| Temperature Range | -20℃ to +60℃ |
| Dielectric Strength | ≥200 VAC @50Hz between circuits |
| Insulation Resistance | 50 MΩ @ 500 VDC |
Product Features
- Smooth rotation with minimal friction
- High reliability and stable performance
- Compact design for space-constrained applications
- Extended working life with gold-to-gold contacts
- Low electrical noise and resistance
- Maintenance-free operation
Technical Advantages
- Gold-to-gold contact ensures maximum durability
- Consistent operation across full speed range
- Minimal current fluctuation
- 30mΩ minimum electrical noise
- Standard 250mm (9.843inch) lead length
Product Images
Manufacturer Information
JINPAT Electronics specializes in high-quality slip ring solutions with over 20 years of experience in design and manufacturing.
Company Highlights
- 12,000 square meter production facility with 500+ employees
- Recognized as National High and New Technology enterprise
- Holder of 69 patents in slip ring technology
- Established in 1996 with extensive R&D experience
- Over 10,000 successful designs across multiple industries
- Global partnerships with leading enterprises
- Fast delivery and custom solutions available
Frequently Asked Questions
What is a slip ring?
A slip ring is an electromechanical device that enables power and signal transmission between stationary and rotating structures, eliminating damage-prone dangling wires and improving mechanical performance.
Available Slip Ring Types
- Electrical Slip Rings (capsule, through-bore, miniature)
- Signal Slip Rings (USB, fiber optic, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom Solutions
- Large Volume Series
Selection Guidance
For optimal slip ring selection, provide your application's operating parameters including circuit count, voltage/current requirements, speed, and mounting configuration. Our engineers can assist with custom solutions tailored to your specific needs.
