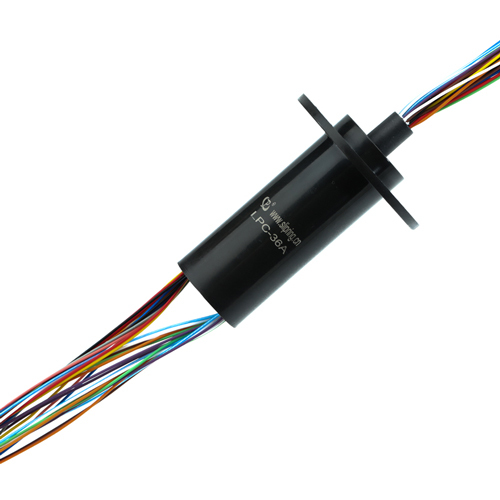

36 Circuit Capsule Slip Ring 2A 240VAC/DC Gold Contact
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| سرعت عملیاتی | 0-200 دور در دقیقه | تعداد مدارها | 36 |
|---|---|---|---|
| ولتاژ | 240 VAC/DC | رتبه فعلی | 2 آمپر در هر مدار |
| دامنه دما | -20 ℃ تا +60 | مواد تماس تلفنی | طلا به طلا |
| اندازه سرب | 28# مس با روکش نقره | طول سرب | 250 میلی متر (9.843inch) |
| قطر سوراخ | 1.5 ~ 6mm | قدرت دی الکتریک | ≥200 vac @50Hz ، بین هر مدار |
| مقاومت عایق | 50 mΩ @ 500 vdc | سر و صدای الکترونیکی | حداقل 30mΩ |
| قطر بیرونی | 22mm ~ 54mm | درجه حفاظت | IP64 |
| حداکثر سرعت | 300 دور در دقیقه | ||
| برجسته کردن | 36 circuit slip ring,2A 240VAC/DC slip ring,gold contact slip ring,2A 240VAC/DC slip ring,gold contact slip ring |
||
توضیحات محصول
Capsule Slip Ring Rotary Joint 36 Circuits 2A IP64, 300RPM Wind Power Slip Ring
Product Specifications
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Operating Speed | 0-200 rpm |
| Number of Circuits | 36 |
| Voltage | 240 VAC/DC |
| Current Rating | 2 amps per circuit |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Gold to Gold |
| Lead Size | 28# silver plated copper |
| Lead Lengths | Standard 250 mm (9.843inch) |
| Hole Diameter | 1.5~6mm |
| Dielectric Strength | ≥200 VAC @50Hz, between each circuit |
| Insulation Resistance | 50 MΩ @ 500 VDC |
| Electronic Noise | 30mΩ Min |
Key Features
- Military standard surface processing
- Precise construction
- Gold-to-gold contact
- Low resistance
- Long service life
Customization Options
- Rotating speed
- Life span
- Protection grade
- Number of circuits
- Current capacity
- Size
- Housing material
- Mass production
Main Applications
- High speed dome
- Camera platform
- Electrical testing equipment
- Rotary table
- Manufacturing and control equipment
Our Advantages
- Large production facility of over 12,000 square meters with more than 500 employees
- Recognized as "National High and New Technology" company with 69 patents
- Long-term partnerships with global enterprises and worldwide agents
- Over 10,000 successful designs for civil, military, commercial and industrial applications
- Established in 1996 with more than 20 years of production and R&D experience
- Free custom slip ring solutions tailored to various equipment requirements
- Fast delivery service
Typical Application
Company Information
Frequently Asked Questions
What do we do?
We focus on developing, designing, and manufacturing high quality slip rings, offering various solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. It can be used in any electromechanical system requiring rotation while transmitting power or signals, improving mechanical performance and simplifying system operation.
What kinds of slip rings do we offer?
- Electrical Slip rings (capsule slip ring, through-hole slip ring, miniature slip ring, etc)
- Signal Slip rings (USB2.0/USB3.0 slip ring, fiber optic rotary joint, high frequency slip ring, etc)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
How do I choose a slip ring?
Proper selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance in selection or custom solutions.
Do you offer custom slip rings?
Yes, our engineers will develop perfect solutions for your needs. Contact us to discuss custom or modified solutions.
